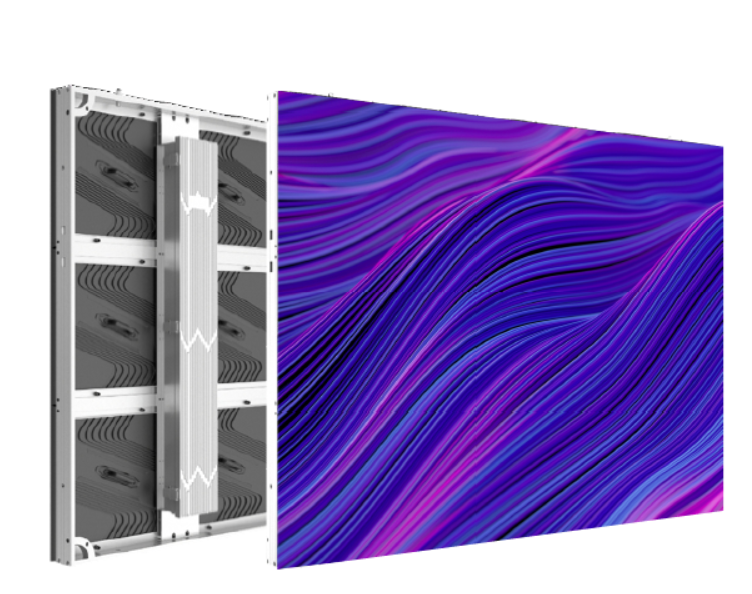

Active LED Outdoor-P6 (Aluminum Cabinet)

Ready to use Active LED Panel with Superior Quality

Creativity with simplicity, Purplewave is a dedicated category brand specially established by Purplewave for the global LED display channel market based on the development concept of “Ready-to-use LED, to fit your demands”. Purplewave have excellent performance, simple design, flexible splicing, convenient maintenance and other characteristics.

  • Stability & Reliability

  • Best Visual Effects

  • Energy Saving

  • Flexible & Convenient

  • Creative

Specifications

Parameter P6 Parameter P6
Pixel Pitch 6.66 Panel Resolution 192x144
LED SMD Panel Dimensions (W/H/D) 1280x960x72 mm
Brightness 6000-7500 Panel Weight 31kg
Refresh Rate ≥6000 Panel Material Aluminum
Grayscale 16 Ingress Protection IP65/IP54
Power Consumption (max./avg.) 630-700/210-233 Visual Angle (H/V) 160/120
