Flexible Active LED P2.5

Ready to use Active LED Panel with Superior Quality

Creativity with simplicity, Purplewave is a dedicated category brand specially established by Purplewave for the global LED display channel market based on the development concept of “Ready-to-use LED, to fit your demands”. Purplewave have excellent performance, simple design, flexible splicing, convenient maintenance and other characteristics.

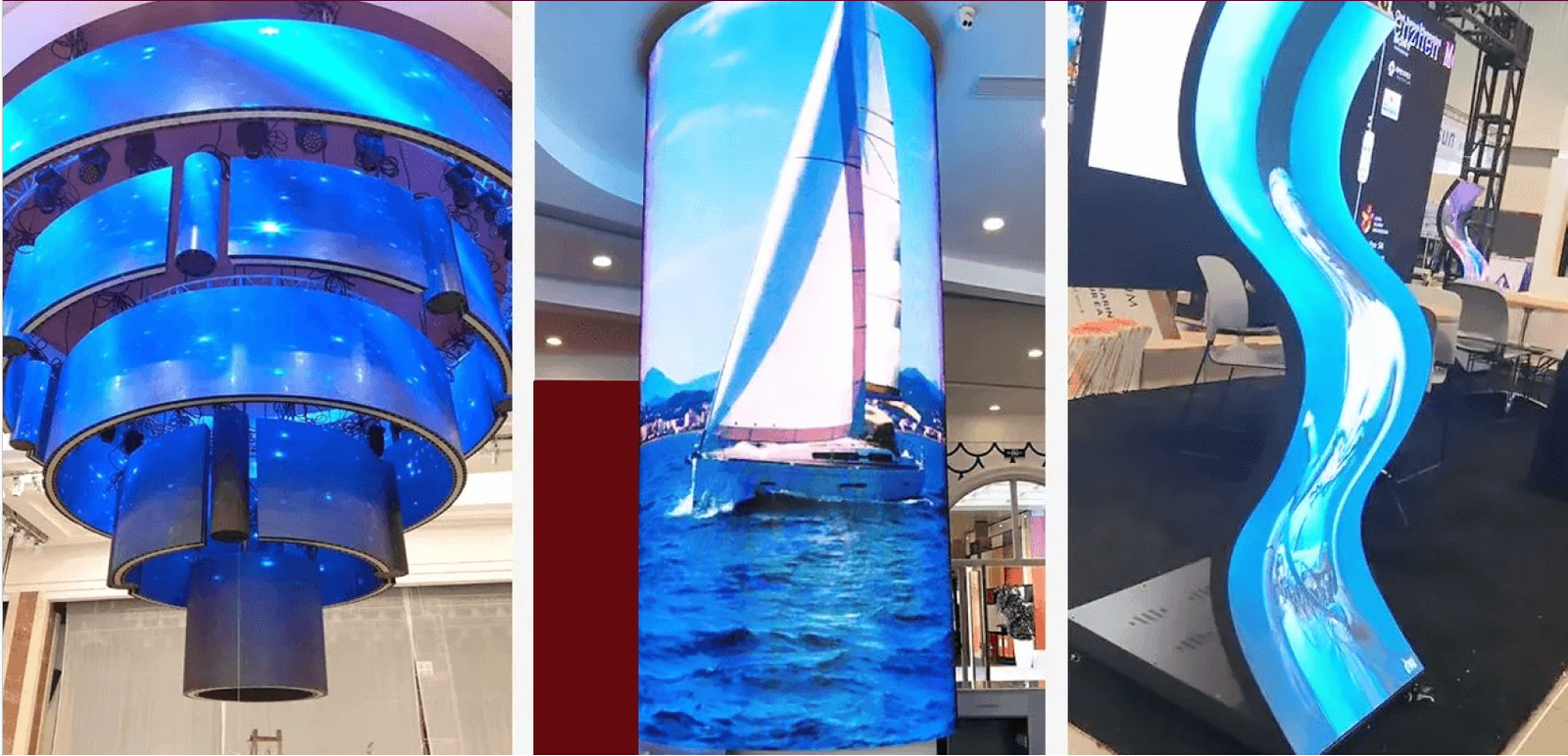

  • Flexible Modeling

  • Small And Light

  • Rubber Bottom Shell

  • Convenient Installation

Specifications

Model P2.5 Model P2.5
Pixel encapsulation SMD1515 Pixel pitch 2.5mm
Module resolution (WxH) 128x64 Module size (WxH) 320x160mm
Module weight (kg) 0.25±0.01 The curvature of the center and diagonal ≥120°
White balance brightness (nits) 500 CD/㎡ Standard color temperature (K) 3000~10000K Adjustable
Viewing angle (Hor°/Ver°) 140°/140° Contrast 3000:1
Maximum power consumption (W/㎡) 328W/㎡ Average power consumption (W/㎡) 98W/㎡
Power supply requirements AC90~132V/AC186~264V, 47-63 (Hz) Frame change rate (Hz) 60Hz
Drive mode 32 Scan Refresh rate (Hz) 3840Hz
Number of color processing bits (bits) 14 Bit Lifespan (HRS) 100,000H
